Grid Pathfinding for Godot 4

Grid Pathfinding for Godot 4 is a lightweight and reusable pathfinding addon designed for grid-based projects using Vector2i coordinates.

Built to integrate with the Grid Utility addon, it provides A* pathfinding and reachable-area helpers without making gameplay assumptions. The logic is fully decoupled and suitable for a wide range of grid-based games and tools.

This addon is intended for developers who want reliable, flexible grid navigation without introducing unnecessary complexity or engine-level constraints.

Key Features

• A* pathfinding on grid-based layouts

• Support for 4-way and 8-way movement

• Optional control over diagonal corner cutting

• Reachable-area and movement-range queries

• Custom walkability and cost callbacks

• Game-agnostic design suitable for multiple genres

Installation Instructions

Requirements

***This addon requires the Grid Utility plugin - sold separately or as bundle.***

The project must have the following autoload enabled:

• Name: Grid

• Script: res://addons/grid_utility/Grid.gd

Grid Utility can be installed separately or via the bundled Grid Toolkit.

Installation Steps

1. Copy the addon folder into your project:

   res://addons/grid_pathfinding/


2. Enable the plugin:

   • Open Project → Project Settings → Plugins

   • Locate Grid Pathfinding

   • Set it to On

3. Ensure Grid Utility is also enabled so the Grid autoload exists.

Basic Usage Example

var pf := GridPath.new()
var is_walkable := func(cell: Vector2i) -> bool:
    return true
var path := pf.find_path(
    start_cell,
    goal_cell,
    is_walkable
)

The returned path is an array of Vector2i cells from start to goal (inclusive).
If no valid path exists, the array is empty.

Reachable Areas (Movement Range)

var result := pf.reachable(
    start_cell,
    is_walkable,
    Callable(),
    { "max_cost": 8 }
)
var reachable_cells := result["cells"]
var cost_map := result["cost"]

This can be used for movement ranges, flood-fill logic, influence maps, and AI decision systems.

Recommended Uses

• Tactics & turn-based games

• Roguelikes / dungeon crawlers

• Puzzle games with grid movement

• AI movement & decision systems

• Grid-based tool editors and utilities

Included Demo Controls

• Left Click — set START cell

• Right Click — set GOAL cell

• Middle Click — toggle obstacle

• M — toggle 4-way / 8-way movement

• C — toggle diagonal cutting

• R — toggle reachable range visualization

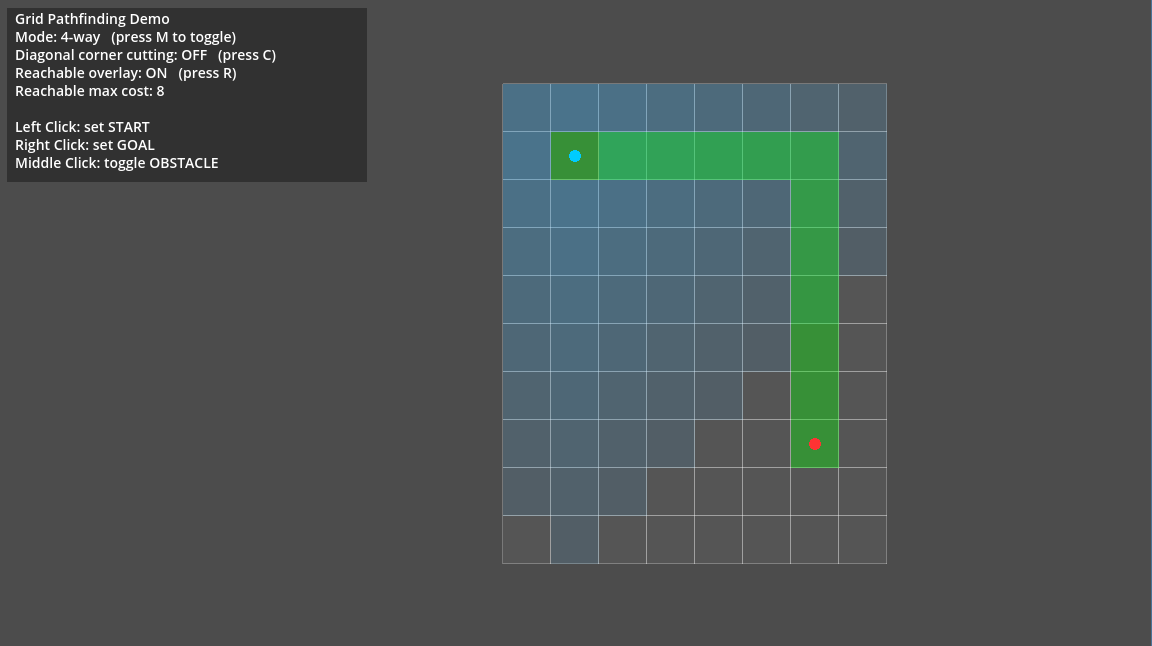

Demo

An interactive demo scene is included with the download:

res://demo/PathfindingDemo.tscn

The demo showcases obstacle placement, pathfinding, movement modes, and reachable-area visualization.

License

MIT License.

Author

Height Gaming
